The facility is spread over 6,000 square feet and is having all state-of-art manufacturing facilities viz. Hydraulic Based Shearing Machine, Bending Machine, Powder Coating, Nine Tank Pre – Treatment, & Pneumatic Tools etc.

We are continually striving to provide our customers completely integrated services coupled with timely services and quality.

PSG Electricals believes in excellence & tries to achieve the highest possible level for its customers. We enjoy a list of exulted customers. Detailed list of which is also enclosed herewith. We would also like to invite you for factory-visit as per your convenience.

RESOURCES

  • INSULATION RESISTANCE TESTER (MAGGER) 1000V DC
  • HIGH VOLTAGE TESTER UP TO 5KV
  • SECONDARY INJECTION KIT OF 5A FOR TESTING OF RELAYS & METERS.
  • DIGITAL COAT GUAGE FOR MEASURING OF POWDER COAT THICKNESS.
  • VERNIERS OF DIFFERENT SIZES
  • PRE-TREATMENT EQUIPPED WITH 9 TANK PROCESS.
  • POWDER COATING & BAKING IN DUST FREE BOOTH & OVEN.
  • ELECTRO STATIC GUNS FOR POWDER COATING.
  • BUS BAR BENDING MACHINES.
  • HYDROULIC SHEET SHEARING MACHINE
  • HYDROULIC SHEET BENDING MACHINE
  • POWER PRESS 20 TON
  • POWER PRESS 10 TON
  • CLOSED DIES FOR BETTER SHEET METAL WORKING.
  • MIG WELDING MACHINES DIFFERENT MODELS.
  • 200% POWER BACK UP GENERATOR CAPACITY.

FABRICATION:

Enclosures are fabricated with 2.0/1.6 mm smooth & wrinkle free, stress free, TATA/JINDAL CRCA sheets by usage of extensive tooling in following in-house machines:

  • Hydraulic Sheet shearing machine
  • Hydraulic Break press (Sheet Bending machine)
  • Different presses, dies & tools
  • Equipped with all quality control & testing tools.

PRE-TREATMENT SYSTEM:

PSG Electricals uses a unique method for ideal Pre-treatment. It has got Nine Tanks at the bottom. Air agitator system causes the water to stir & does not allow the chemical to deposit at the bottom in addition. At ambient room temperature

POWDER COATING :

After complete Pre-Treatment as per IS-6005, the fabricated components are Powder coated in a Conveyorised Powder Coating Booth with high quality epoxy polyester powder, thus giving long life to panel & good aesthetics.

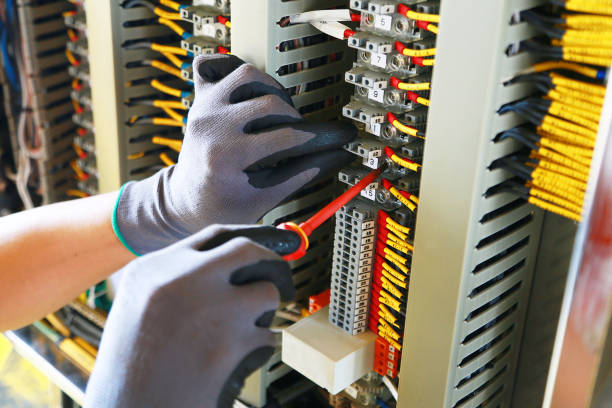

WIRING:

PSG Electricals has developed a modern Pneumatic Wiring shop with highly skilled wire-men & precision tools. We use computerized ferruling for easy identification of wiring terminals during operation. The wiring is bunched with the PVC duct. Also, the loose wiring is bunched into plastic spiral.

BUS BAR:

We purchase Aluminum Bus Bar of EC91E Electrolytic Grade, from HINDALCO only and cross sectional area is chosen on the basis of Bus Bar calculation for adequate current carrying capacity & necessary temperature rise duration. Bus bars are braced rigidly to with stand Short Circuit Fault with SMC supports & housed in an electroplated ‘C’ & ‘U’ channels. A separate earth Bus of Cu/G.I. is provided through out the length of the panel. The doors & covers are separately earthed with the body of Panels.
